Handheld Reader

XC-AT188 UHF Handheld Reader

Ultra kompakt RAIN RFID el tipi tarayıcı

Invengo

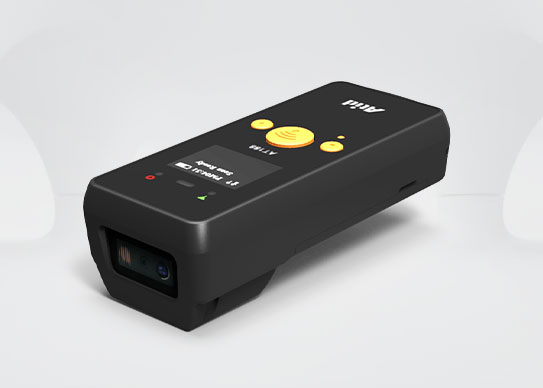

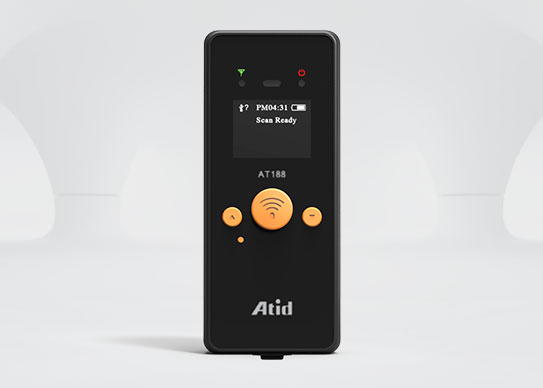

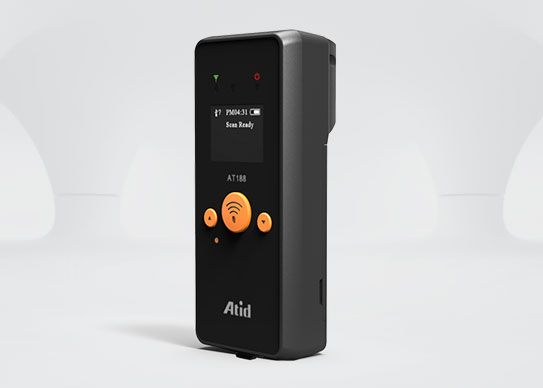

XC-AT188 UHF Handheld Reader

XC-AT188; Windows ve Android desteği, Bluetooth, USB ve 1D lazer veya 2D görüntüleyici barkod seçenekleriyle kompakt ama dayanıklı bir UHF RFID el terminalidir. Toz ve suya dayanıklı yapısıyla kütüphane, lojistik ve askeri takip uygulamalarına uygundur.

Uygulamalar

Kullanım alanları

Perakende ve depo stok yönetimi

Sağlık, lojistik ve üretim alanlarında varlık takibi

Üretimden teslimata kadar tedarik zinciri görünürlüğü

Teknik Özellikler

Teknik özellikler

Performance

ProcessorARM7 Core

Operating SystemWindows, Android

Memory64KB RAM/256KB ROM/Ext 8 Mb

DisplayLCD&LED Indicator

Weight160 g (with Battery&UHF Option)

Operating Temp.-10˚C to 45˚C (14˚F to 113˚F)

Storage Temp.-30˚C to 70˚C (-22˚F to 158˚F)

Humidity5% to 95%, non-condensing

Drop Spec.1.2 m drop to concrete

Dust & Water ProofIP65

Physical

AudioBuzzer

Standard I/0 PortBluetooth 3.0 or BLE, Micro USB

NotificationLED, Buzzer, LCD, vibrator

Dimensions (L x W x H)115 x 50 x 35 mm (4.527 x 1.968 x 1.377 in)

Battery Supply

Main Battery1,100 mAH Li-Ion Rechargeable Battery

Power AdapterVia USB or optional Battery Charger

Network Characteristics

Bluetooth4.1 Classic (HID/SPP)

USBUSB 1.1

Barcode Data Processing Device

Barcode Engine1D Laser or 2D Image Scanner

RAIN RFID Reader/Writer

Chips setImpinj R500

Frequency865 to 928 Mhz (CE & FCC)

Reading range0 m to 1 m (0 to 39.370 in) (According to Tag & Environment)

Writing range0 m to 0.5 m (0 to 19.685 in) (According to Tag & Environment)

RF output26 dBm, Circular (Max) Internal Antenna

ProtocolEPCglobal C 1 Gen 2, ISO/IEC18000-6C

Accessories

Standard AccessoriesNeck strap, USB Cable

Optional AccessoriesAC-DC Adapter, Battery Charger

Diğer Handheld Reader Ürünleri

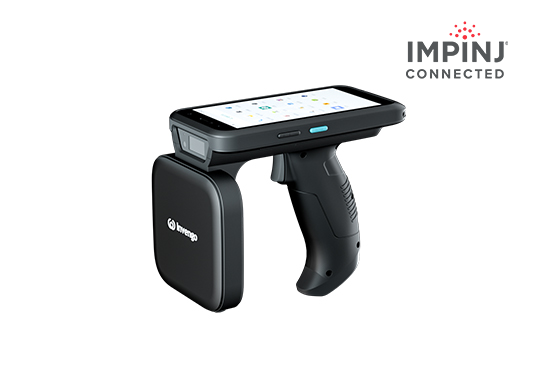

XC2908 Handheld Reader
