Handheld Reader

XC2908 Handheld Reader

Güçlü performanslı taşınabilir UHF RFID okuyucu

Invengo

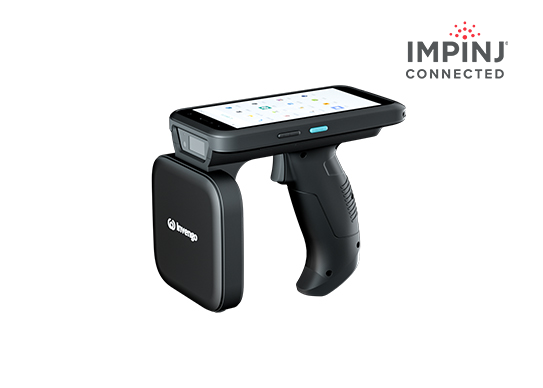

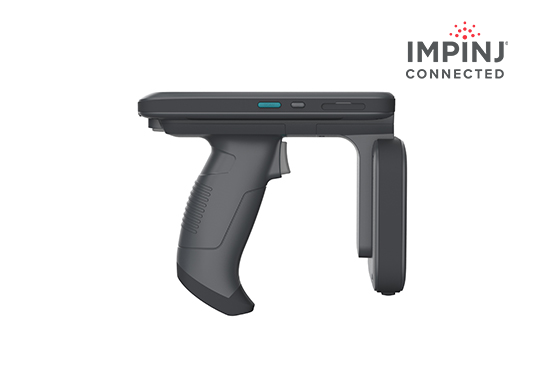

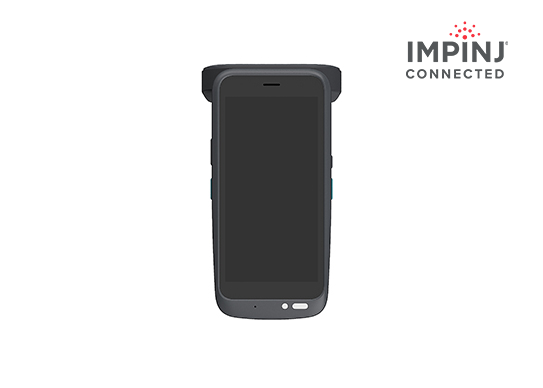

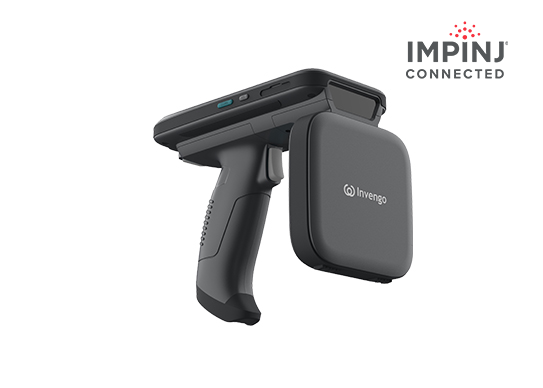

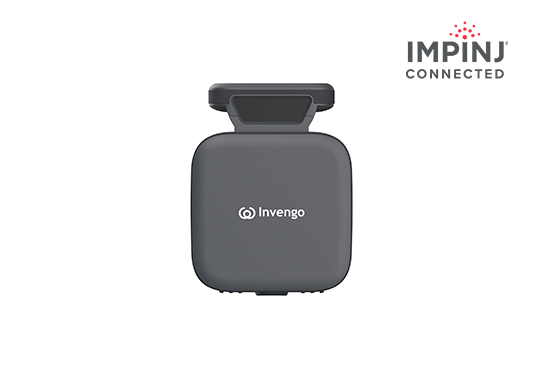

XC2908 Handheld Reader

XC2908; Invengo'nun kendi geliştirdiği UHF modül, quadrifilar helix anten ve çoklu etiket algoritmasını bir araya getiren güçlü bir taşınabilir okuyucudur. Impinj R2000 çipi, çift batarya yapısı ve uzun çalışma süresiyle sahada stabil UHF performansı sağlar.

Teknik Özellikler

Teknik özellikler

Physical

Dimensions (L x W x H)170 x 78 x 150mm +/- 2mm

Weight710g

Display Screen5.5-inch IPS HD full screen, 720 x 1440 resolution

Touch ScreenCorning Gorilla 3rd generation industrial grade multi-touch capacitive screen, support operation with gloves or wet hands

Keypad1 power button, 2 scan keys, 2 volume buttons

AudioEarpiece, speaker, microphone

External PortType-C, OTG

Expansion Slot1 SIM card slot, 1 card slot supports SIM or TF card (Nano)

SensorGravity, distance, light

Performance

CPUMT6765 eight-core 64-bit processor, 2.3GHz

OSAndroid10.0

RAM+ROM3GB+32GB, 4GB+64GB(Optional), 6GB+128GB(Optional)

Internal Expansion128GB Micro SD

Drop Spec.1.3m

ProtectionIP65

Certification3C, UN38.3, FCC

Battery

Battery CapacityAmount:10000mAh, dual battery and intelligent power supplying. Main battery:5000mAh. Battery of Handle:5000mAh

AdapterAC110V to 240V, DC5V/3A

Working Hour> 10h (Depending on usage)

Charging Duration3h to 4h

Standby Time> 250h

RAIN RFID (UHF)

ChipImpinj R2000

ProtocolEPC Global UHF Class1 Gen2, ISO 18000-6C

Frequency840MHz to 960MHz

Region of AppliacationUniversal

RF Output0 to 30 dBm

Reading RangeReading distance can reach 20m in a outside surrounding

Writing Range0 to 5m (Depending on the environment and tag type)

Maximum Read Rate600 time/s

Type of AntennaCircular

Network and Wireless

WWAN4G

WLANIEEE802.11a/b/g/n/ac, 2.4GHz and 5GHz

BluetoothV5.0

GNSSGPS, A-GPS, BeiDou, GLONASS

Environmental

Operating Temp.-20°C to 50°C

Storage Temp.-40°C to 70°C

Humidity5% to 95% RH

Supporting

Barcode Module (optional)Zebra: SE4710/SE4750, Honeywell:N6603,N1

CameraFront camera 5 million pixels, the rear camera has 13 million pixels with flash and autofocus

AccessoriesAdapter, USB cable, screen protection film

Develop EnvironmentInvengo software developing kit. Support Java.

Diğer Handheld Reader Ürünleri

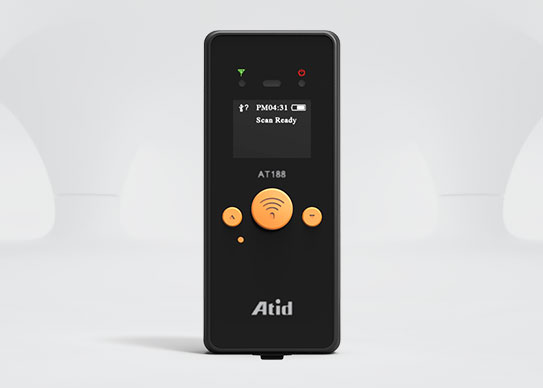

XC-AT188 UHF Handheld Reader

XC-ATS100 RAIN RFID Sled Reader

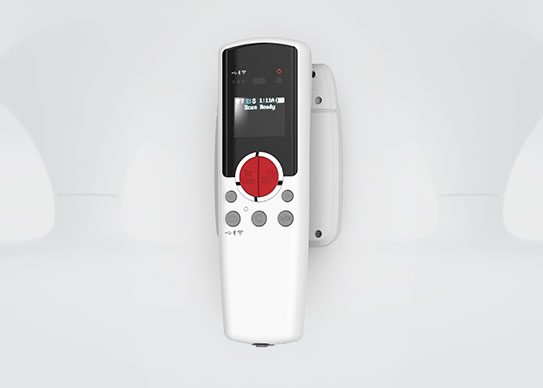

XC-AT388 UHF Bluetooth RFID Reader
