Handheld Reader

XC-AT388 UHF Bluetooth RFID Reader

Bluetooth bağlantılı mobil UHF RFID okuyucu

Invengo

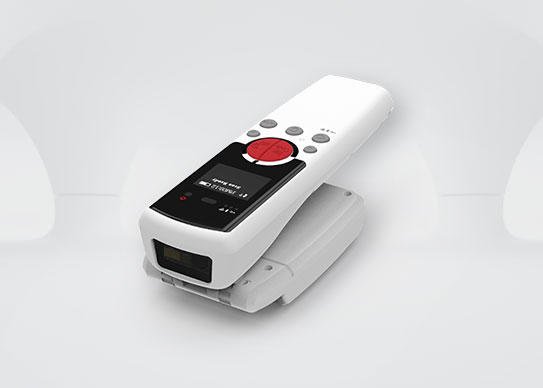

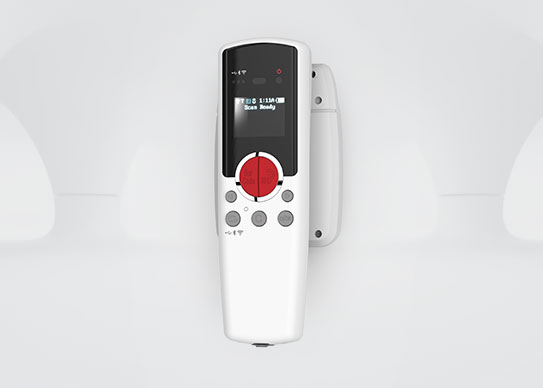

XC-AT388 UHF Bluetooth RFID Reader

XC-AT388; ARM7 Core yapısı, güçlü RFID okuma kabiliyeti, RAIN RFID UHF ve 1D/2D barkod desteğiyle Android telefon veya tabletlerle sorunsuz çalışmak üzere tasarlanmış Bluetooth RFID okuyucudur. IP65 dayanımıyla farklı saha uygulamalarına uygundur.

Uygulamalar

Kullanım alanları

Perakende ve depo envanter kontrolleri

Ekipman, IT varlığı ve saha varlık takibi

Tedarik zinciri, sevkiyat ve kargo takibi

Hasta ve medikal ekipman takibi gibi sağlık uygulamaları

Teknik Özellikler

Teknik özellikler

Performance

ProcessorARM7 Core

Memory64KB RAM / 256KB ROM, Ext.8Mb

DisplayLCD & LED Indicator

Weight210g (7.40 oz) (PDA only, without battery)

Operating Temp.-10˚C to 45˚C (-14˚F to 113˚F)

Storage Temp.-30˚C to 70˚C (-22˚F to 158˚F)

Humidity95%, non-condensing

Drop Spec.1.5 m drop to concrete

Physical

AudioBuzzer

Standard I/0 PortBluetooth, USB Client WLAN

NotificationLED, Buzzer, LCD, Vibrator

Dimensions (L x W x H)164 x 50 x 30 (54)mm (6.45 x 1.96 x 1.18 (2.12) in)

Battery Supply

Main BatteryLithium-Ion 3,200mAh (Rechargeable)

Network Characteristics

WLANIEEE 802.11 b/g/n Compliant

BluetoothClass 4.1 Classic (HID/SPP)

Data Capture Device

Barcode Engine1D Laser or 2D Imager Barcode Scanner

RAIN RFID Reader

FrequencyCE: 865MHz to 868MHz, FCC: 902MHz to 928MHz

Reading range0 m to 6 m (0 to 236.22in) (According to Tag & Environment)

Writing range0 m to 0.5 m (0 to 19.68 in) (According to Tag & Environment)

RF output1W (MAX)

ProtocolEPC Gen2, ISO/IEC 18000-6C

Special functionAnti-Collision

Accessories

Standard AccessoriesHandstrap, Battery

OptionalRJ11, Gender (Micro USB to RJ11)
