XC-ATS100 RAIN RFID Sled Reader

Akıllı telefon ve tabletlerle çalışan ergonomik sled okuyucu

Invengo

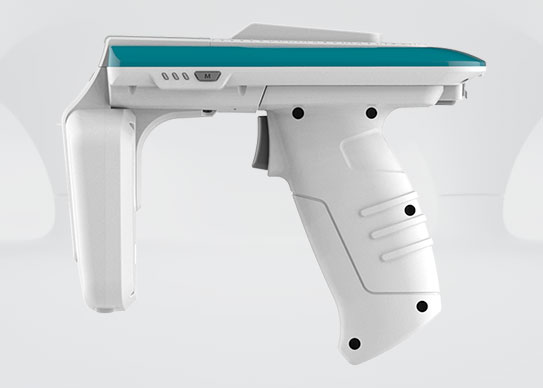

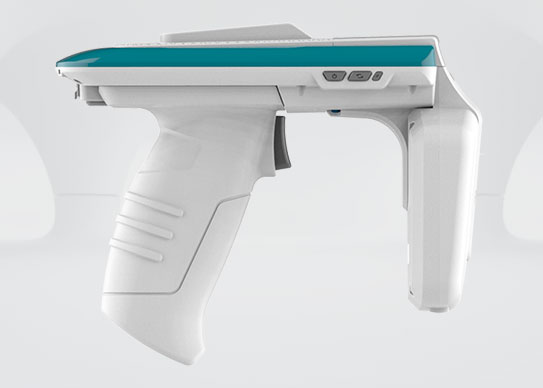

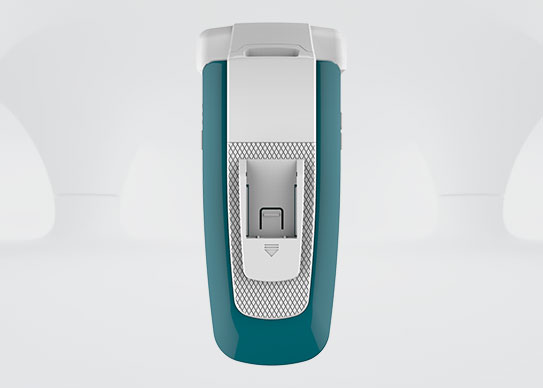

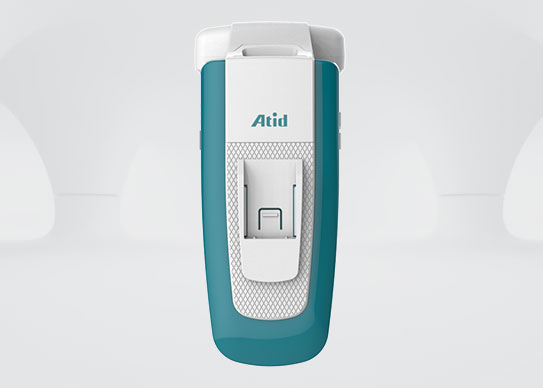

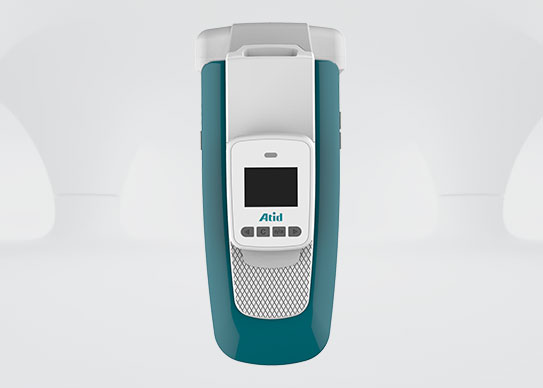

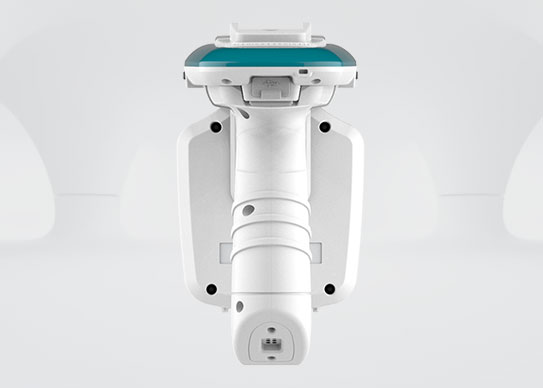

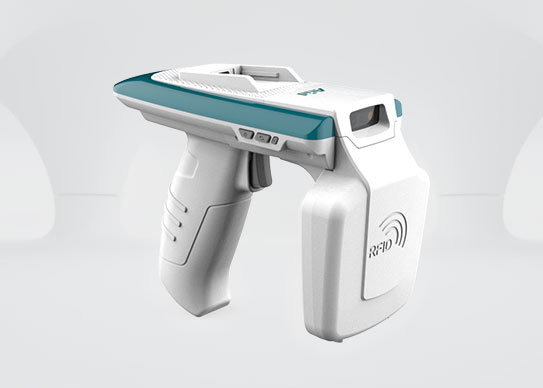

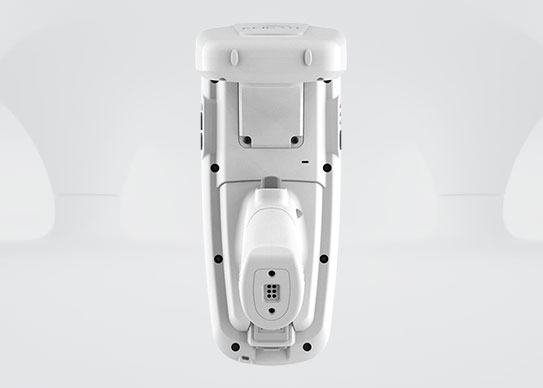

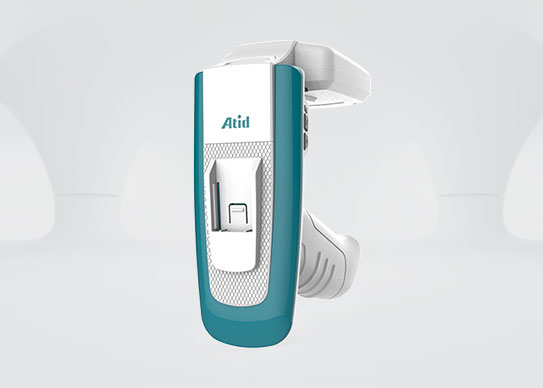

XC-ATS100 RAIN RFID Sled Reader

XC-ATS100; sağlam ve ergonomik tasarıma sahip güçlü bir RAIN RFID UHF sled okuyucudur. Akıllı telefon veya tablete bağlanabilir, 1D ya da 2D imager seçeneğiyle farklı uygulama ve dikey pazarlarda kullanılabilir.

Teknik Özellikler

Teknik özellikler

Performance

ProcessorARM7 Core

Memory256KB ROM, Ext.8Mb Flash memory

Environmental

Operating Temp.-10°C to 40°C (14˚F to 104˚F)

Storage Temp.-40°C to 70°C (-40˚F to 158˚F)

Charging Temp.0°C to 45°C (-32˚F to 133˚F)

Humidity5% to 85% non-condensing

Drop Spec.1.2M Drop to concrete

Dust & Water ProofIP65

Physical

AudioBuzzer

Standard I/0 PortAny USB host with a VCP driver support (Windows, Linux, Android)

NotificationLED x 3, Buzzer, Vibrator

Dimensions (L x W x H)146 x 173,7 x 70,1 mm (5.748 x 6.838 x 2.759 in)

Weight420g (14.82oz) (with battery)

Power Options

Main Battery3.7V 5,200mAh 19.24Wh Li-Ion battery, Input DC 5V 2A

Communication Interface

BluetoothClass 4.1 Classic (HID/SPP), BLE (Option)

Data Capture Device

Barcode Engine1D or 2D Imager Barcode Scanner

Cradle

Standard InterfaceTBD

Ethernet InterfaceTBD

RAIN RFID (UHF)

FrequencyUS: 902-928MHz, EU: 865-868MHz, Japan: 916-921MHz (1w LBT), 916-923MHz (0.25w LBT)

Reading range0M to 5M (According to Tag & Environment)

Writing range0M to 0.5M (According to Tag & Environment)

RF output1W (MAX)

ProtocolGEN2, ISO/IEC 18000-6C

Special functionAnti-Collision

Gun Handle (optional)

Gun Handle Grip (Pistol Grip)Body, UHF Available

Gun Handle BatteryLithium-Ion 3.7V 5,200mAh (Rechargeable)

Mount TypeSupport Quad Lock

Accessories

StandardUSB Type-C Cable, Handstrap, GUN Handle

OptionalGUN charging, Quad lock, Cradle
